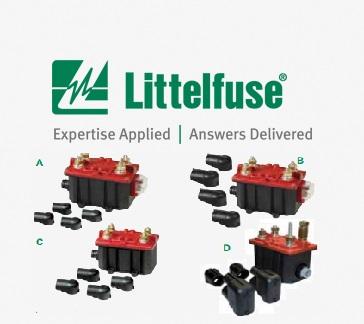

08097460 GENERAL ELECTRICAL MAIN SWITCH TGC/RMCDE 24V
●电气特性
■标称工作电压：12÷24 V
■触点上的最大持续电流：23°C时为250 A
■触点上的最大短时电流：23°C时为2000 A，持续30秒。
●机械特性
■电气和机械操作数量：50.000
■锁紧扭矩螺母M10/M12:20 Nm
